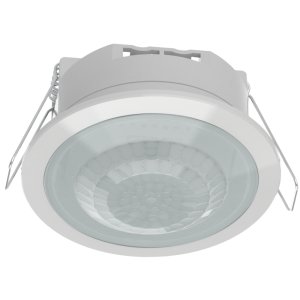

Description Features. -Modular. -Fits 600 series. -Fits 800 Modena series. -Range of colours – White, black, cream, ivory. -Double insulated. -Surge protection (PIR circuit only). SPECIFICATIONS. - Forward range of 5 Metres. - Field of view 100deg Horizontal / 82deg Vertical. - Time settings 10 sec to 15 minutes. - Adjustable lux 1-5 min. to 2000 lux max. - 230-250 volts AC at 50Hz. - Operating temperature –10° to 50°C. - Ratings - 750W MAX Incandescent, (3A). - 100W MAX Fluorescent. - 100W Motor rating. - 400W Halogen rating (Wire-wound & Electronic transformer) . APPLICATIONS. Security lighting in domestic, commercial or industrial premises. Power saving with automatic switching. Convenience.
SKUs 0000553589
UOM EA
Supplier PDL
Supplier Part #(s) PDL100MPIR
Pack Size 1

AC_Manual00254463/61212886_61212886_user_guide_35007143.pdf
ModelMovement sensor
Sensor typePassive infrared
Maximum transmission range frontally5m
Nominal voltage250V
Maximum duty cycle15min
Frequency range50Hz to 50Hz
